Description
3.3<>5v Level Shifter

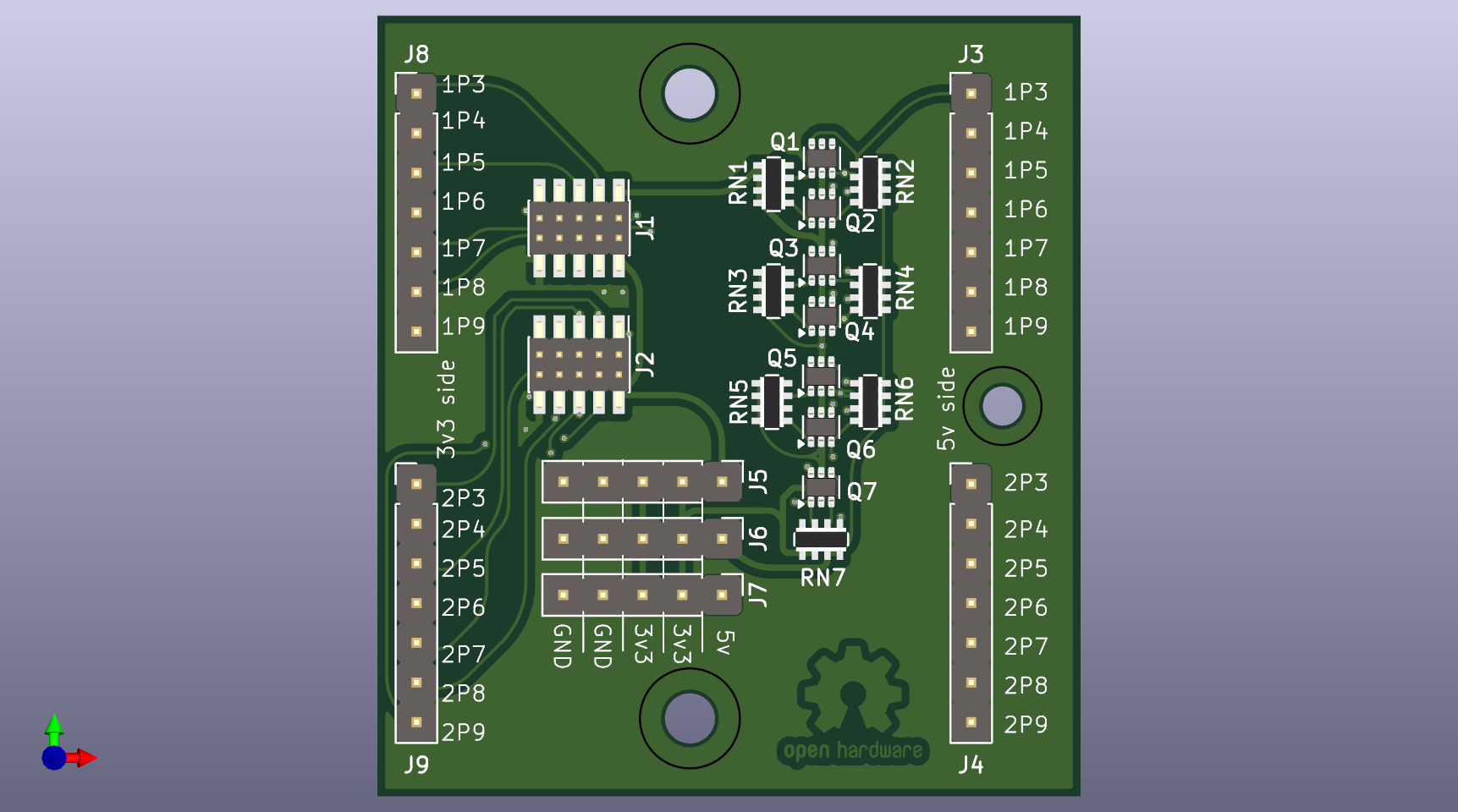

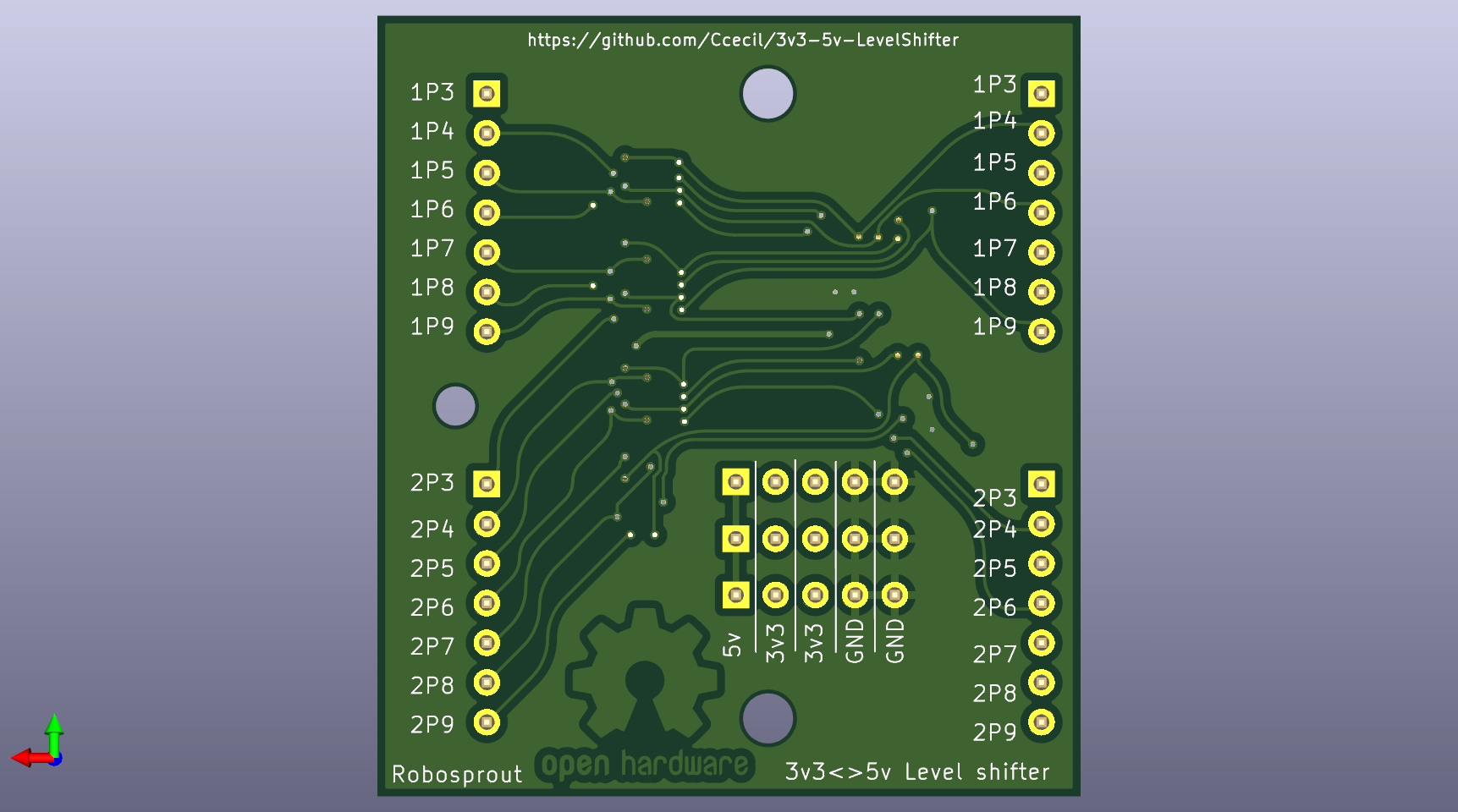

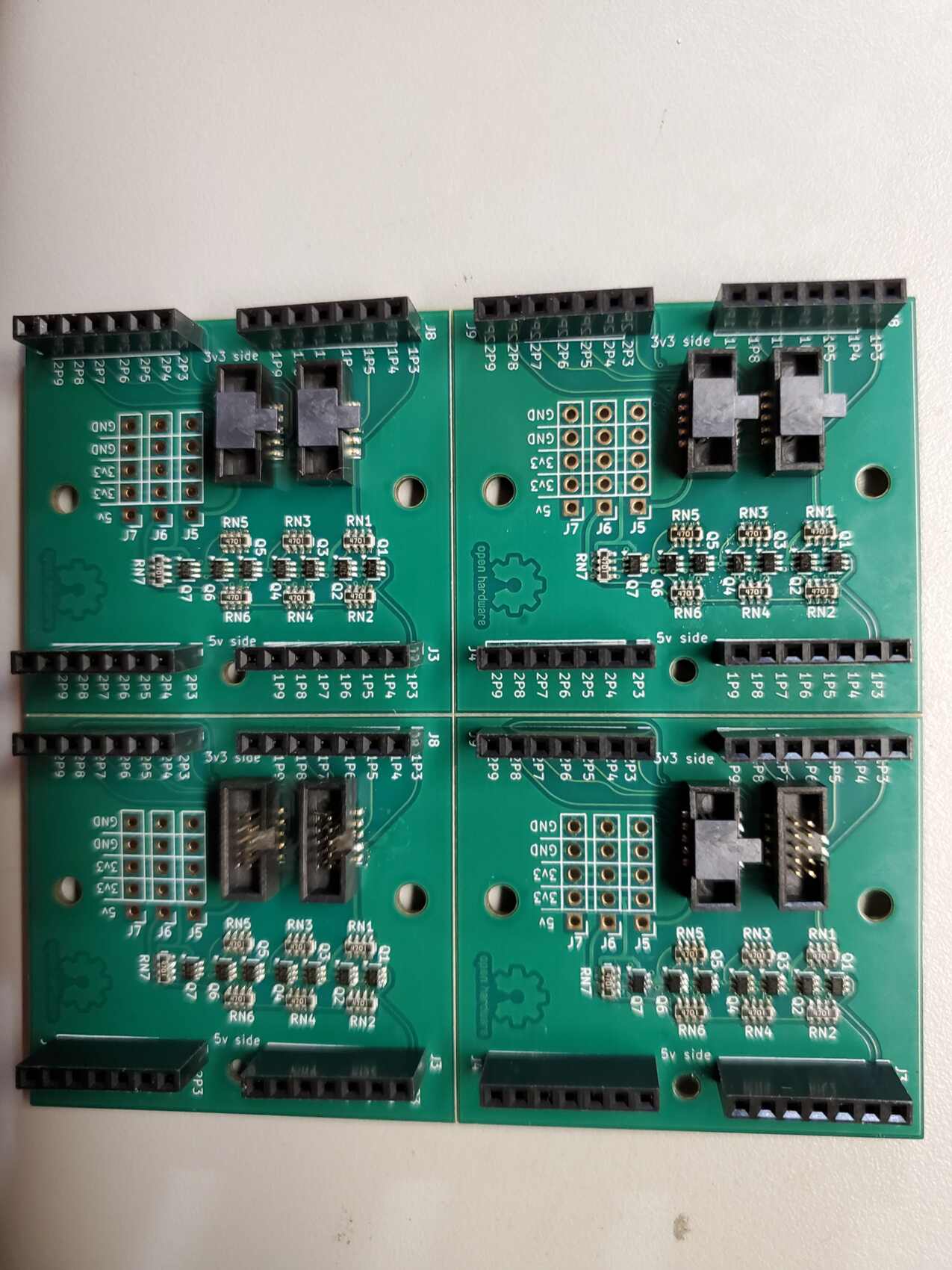

This breakout board is designed to shift logic signals bidirectionally from 3.3v < > 5v. This allows connection between devices which are limited to 3.3v with devices which are 5v compatible.
This is virtually transparent to the devices which it is connected and requires no custom configuration. It is a hardware intermediary board.
Features:
-Bidirectional level shifting of up to 14 signals.
-2 7-pin 2.54mm(.100”) headers for 3.3v side
-2 7-pin 2.54mm(.100”) headers for 5v side
-2 10-pin “Gadgeteer” headers for 3.3v side.
-3 5-pin headers with 3.3v/5v/GND for optional breakouts or power input.
Can operate with or without a Smoothieboard V2.
Opensource hardware repository here: https://github.com/Ccecil/3v3-5v-LevelShifter
