Description

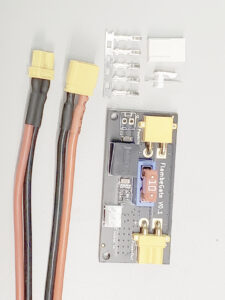

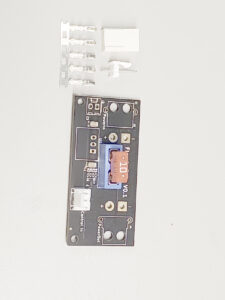

This board is a copy of the high side FET circuit that is on the Smoothieboard V2 Prime…with an added fuse and connectors to allow easy connection directly into the extruder harness near the control/power end.
Control via setpoint/failsafe controllers or microcontroller switch via 3 pin connector.

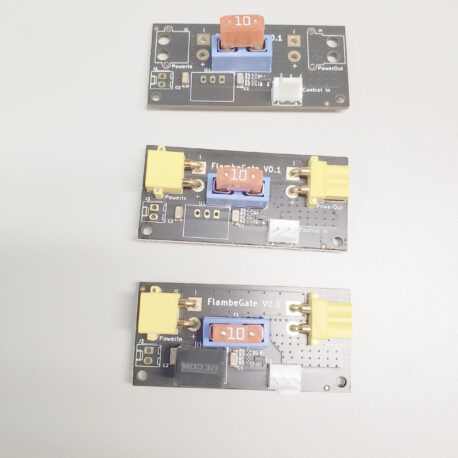

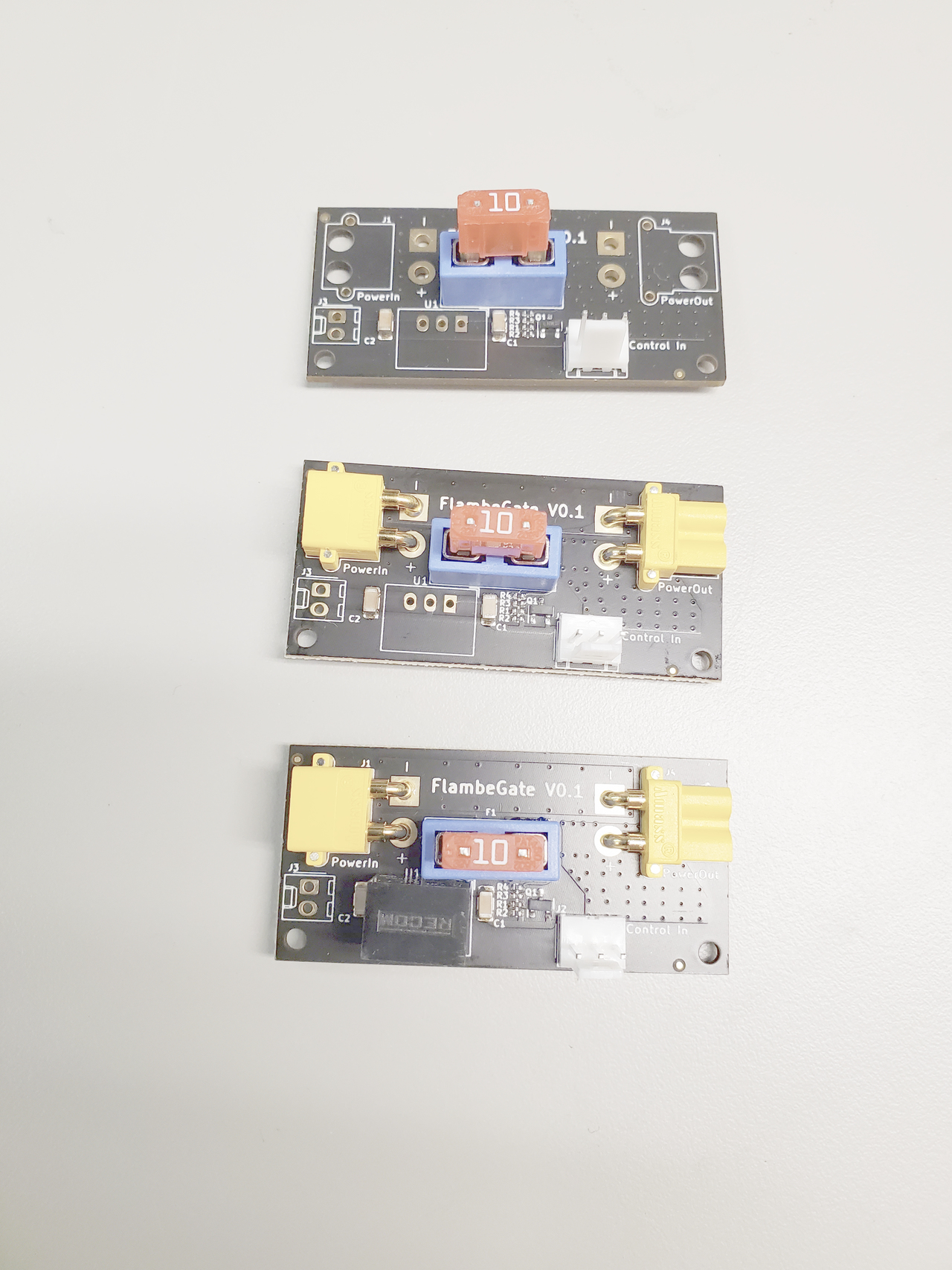

XT30 connectors can be right angle, vertical
Strain relief holes allow for direct wire connection without connectorsOptional onboard 5v via Recom regulator
More info here: https://github.com/Ccecil/Flambegate
