$110.00
Smoothieboard ver 1.1 3x custom build
18 in stock
These were a custom build for an OEM with some differences from the standard board.
-No ethernet PHY or connector
-No LEDs onboard (MCU or FETs)
-2x length pin headers
-Recom 5v regulator installed
-No power connector installed
-Pin header in center of pushbutton/LED position

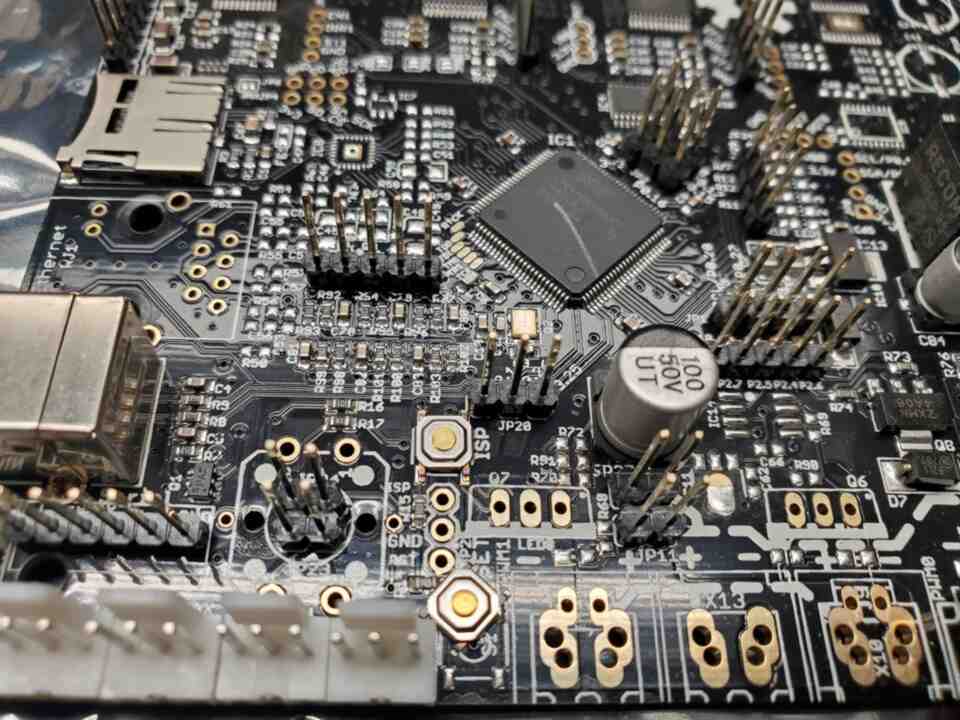

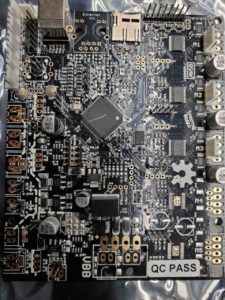

Board comes with 3x A5984 drivers onboard and 3 small MOSFETs installed. Pictures show exact mods.
| Weight | .1 kg |
|---|
