Description
Key features:
Single common +V wire which powers hotend, fans and other outputs
5v line with optional output
Probe input with servo header
Motor connector with multiple connector options

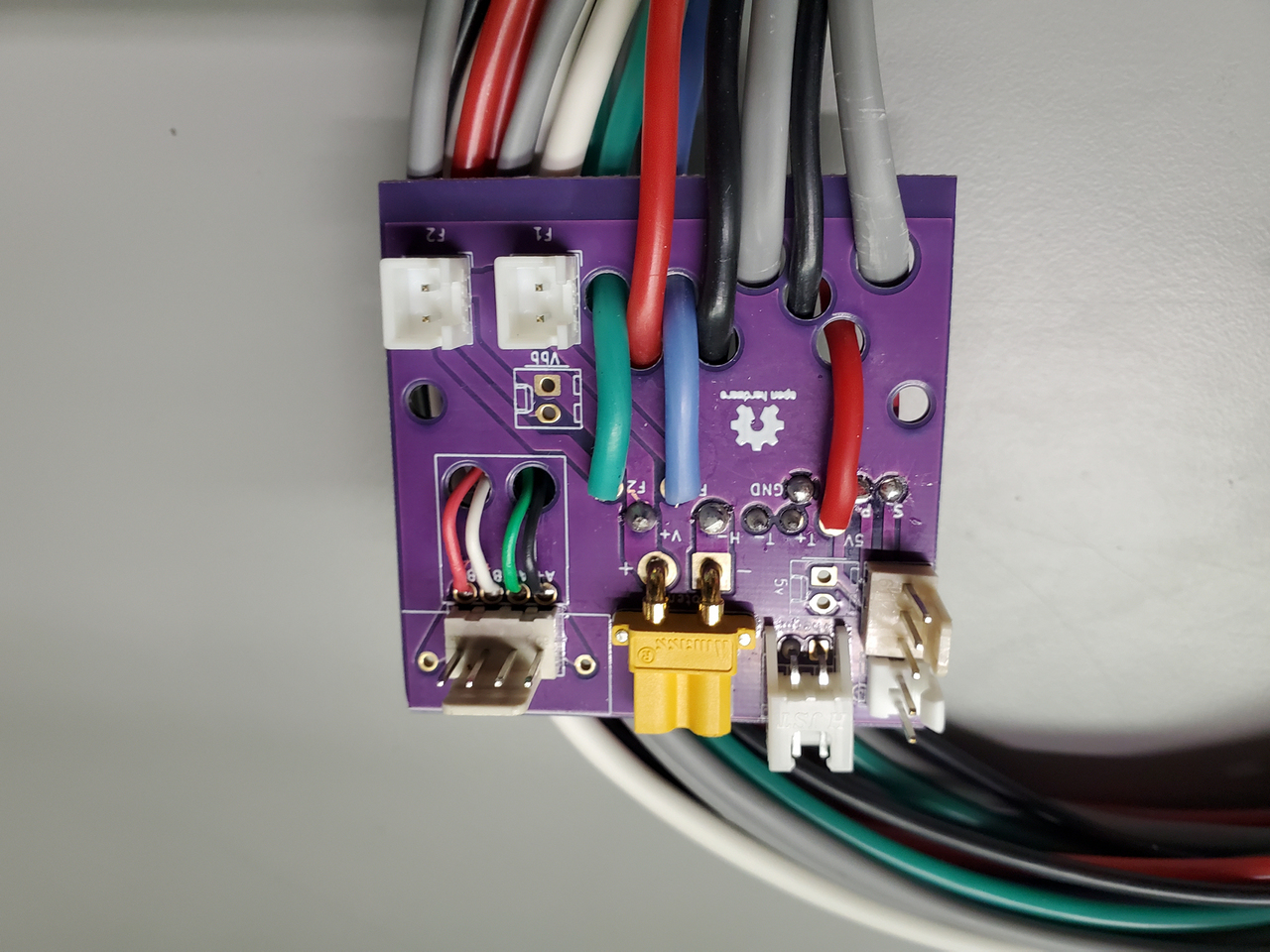

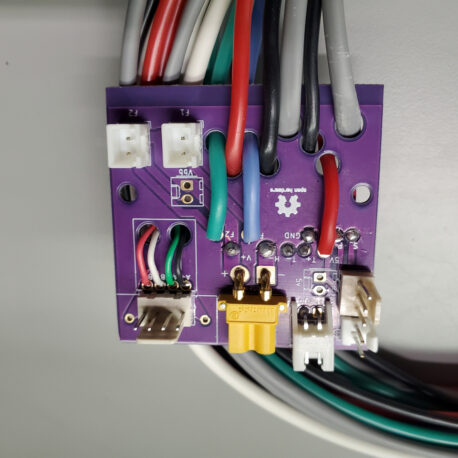

XT30 Connector for Hotend allows easy swap.
Locking JST connectors for fans and hotend sensor.

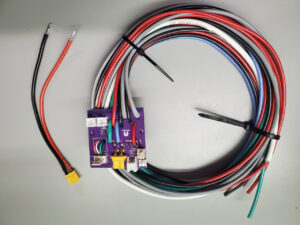

Assembled 1250mm harness with silicone wires for all power and shielded 2 wire for all signals.
VBB and 5v output connectors (optional)
Heatshrink labels for all wires
Connectors and crimps included
https://github.com/Ccecil/ExtruderBoardMotor-V0.1
